Custom hot water heating air radiator for industrial dryers

FOB Reference Price:Get Latest Price
$200.00 - $9,999.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Liquid Flow Rate:
0.1~10 M/s
Maximum Working Pressure:
1.0Mpa
Weight:
10-300kgs
Dimension(L*W*H):
DESIGNED
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
QINGLI
Model Number:
air heat exchanger
Voltage:
220V/380V
Certification:
Other
Structure:
Tube Heat Exchanger
Power(W):
2.2-400kw
Material:
stainless steel
Type:
air heat exchanger
Application:
heaing air
Tube material:
SS304/SS316/SS316L/Carbon Steel/Cast Iron
Color:
Silver
Frame material:
SS304/SS316/SS316L/Carbon Steel/Cast Iron
Fin material:
SS304/SS316/SS316L/Carbon Steel/Cast Iron
After-sales Service Provided:
No overseas service provided
Warranty:
12 Months
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard wooden case for export
Port
guangzhou
Lead Time :
7~20 days after payment

detail

Product Description

air heat exchanger designed to heat air using hot water for applications such as grain drying, wood chip drying, log drying, paper drying etc.

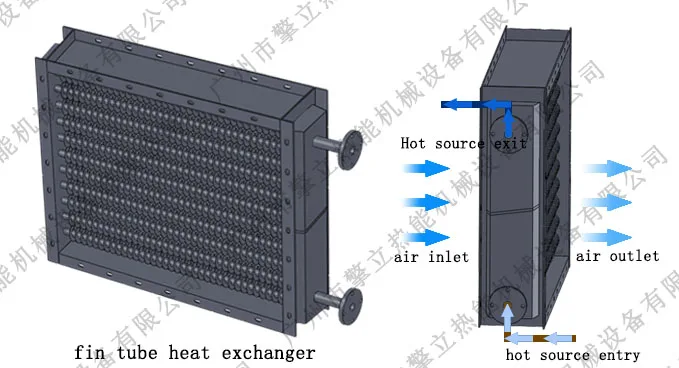

fin tube heat exchanger.jpg

 Designed for even air distribution across heat exchanger

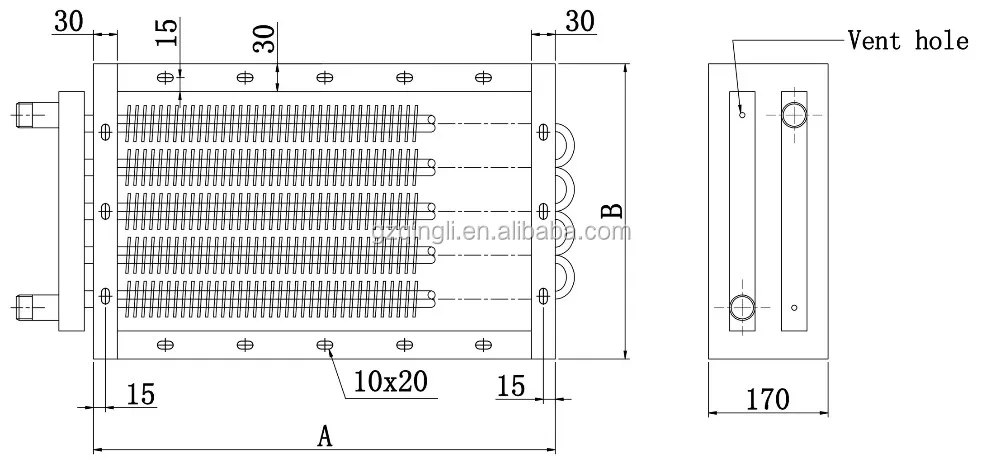

specification of fin tube coil
fin tube453245.jpgFin MaterialTube MaterialWall thinckness



copper

aluminum

Copper

Stainless Steel

Carbon Steel

 2.0~4.0mm

Heat exchange medium



steam, hot water, thermal oil, etc.

size

1,standard size follow the data.

        2,customize size optional,contact us.

.jpg

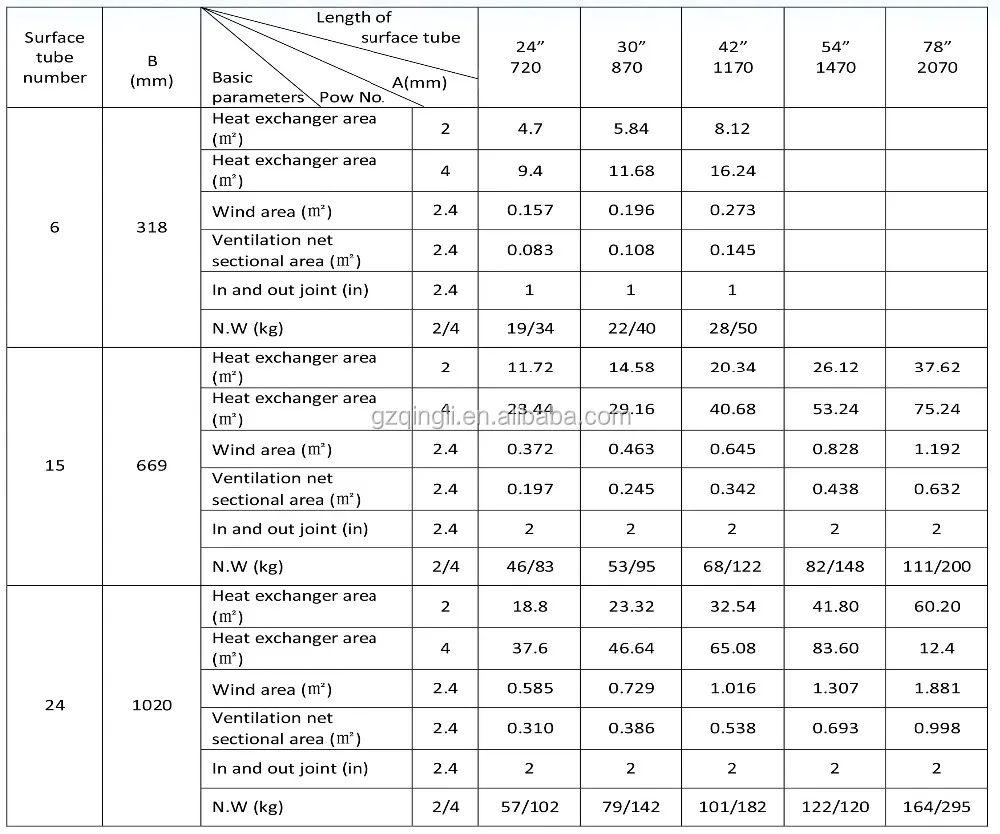

The data sheet of water to air heat exchanger

You can select the corresponding data according to the product map.otherwise ,you can contact us for your selection

The data of water to air heat exchanger

3

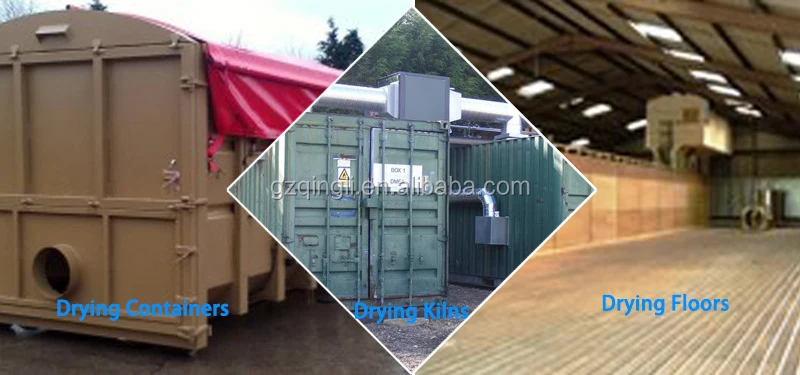

Water to air heat exchanger application

industrial dryer.jpg

Production Process


Company Information

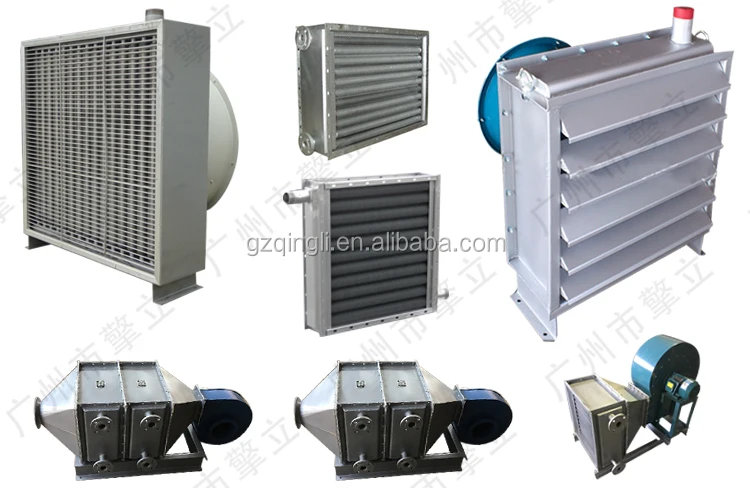

We are a heat exchanger manufactures for more than ten years! the products as the following:

1.fin type condenser,plate type condenser
2.Industrial dryer part heat exchanger,air heating radiator
3.Evaporative condenser,Evaporator
4.fin tube coil ,coil type heat exchanger
5.Heat recovery unit,industrial heat exchanger
we can be designed and manufactured all as per Customers' drawings or requirement.
