- Liquid Flow Rate:
-
0.1~10 M/s
- Maximum Working Pressure:
-
2.5Mpa
- Weight:
-
5-500KG
- Dimension(L*W*H):
-
Request
- Condition:
-
New
- Warranty:
-
1 year
- After-sales Service Provided:
-
Online support, No overseas service provided
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
GZQINGLI
- Voltage:
-
no Request
- Certification:
-
other
- Structure:
-
Tube Heat Exchanger
- Applicable Industries:
-
Manufacturing Plant
- Material:
-
Carbon Steel/stainless steel
- pipe material:
-
copper/steel
- internection:
-
flange
- Application:
-
Powerplant
- Tube length:
-
1500~3500mm
- Supply Ability:
- 100 Piece/Pieces per Month
- Packaging Details
- standard wooden case for export or according to you requirement.
- Port
- guangzhou

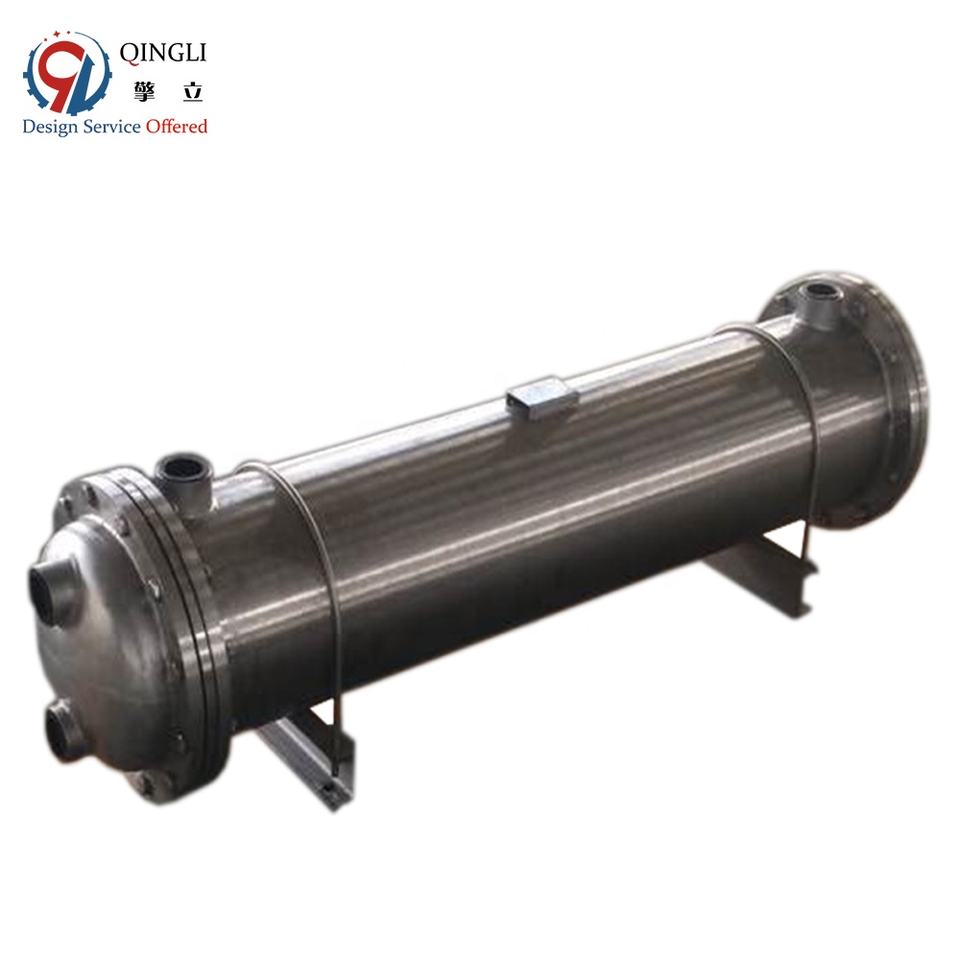

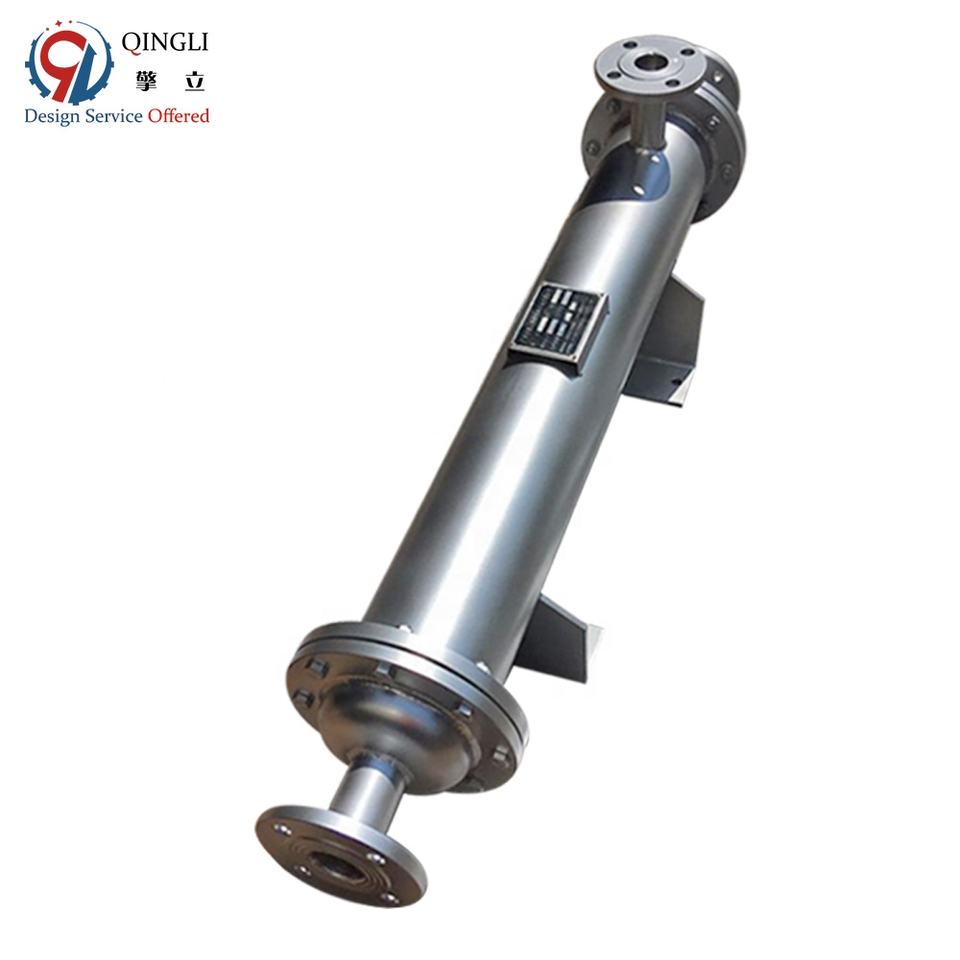

- Picture Example:
-
Tubular heat exchanger widely using in heating and cooling treatment of materials during production in food, beverage, Pharmacy, chemical industry etc,tube heat exchanger could be designed and produced according customers various requirements.different material ,size accepted.
 |  |
| specification for tubular heat exchanger | ||
| tubular heat exchanger | tube bundle heat exchanger | stainless steel or copper |
| size | 1,standard size according to follow data. | |
| 2,customzied size optional,professional designer over 10 years | ||
Customzied size optional
1,Design products according to new requirements,and Provide design drawings
2,The customer confirms whether the drawings meet the requirements.
3,Start production and provide production process pictures to clients
How to choose tubular heat exchanger
1,you can choose the one by follow size
2,contact us ,Tell your needs, we will help you select design drawings
Heat exchanging area(m²) | Diameter of Tube(mm) | Diameter of pipe(mm) | Design Pressure(Mpa) |
2.04~3.47 | 1500~2500 | 273 | 0.6/1.0 |
2.63~3.42 | 1500~3000 | 325 | 0.6/1.0 |
8.36~18.26 | 1500~3200 | 400 | 0.6/1.0 |
18.48~30.56 | 2000~3200 | 500 | 0.6/1.0 |
35.12~49.62 | 2500~3500 | 600 | 0.6/1.0 |
tubular heat exchanger features:
1)Usually used for cooling / heating.
2)Pure titanium tube has super strong corrosion proof ability and high intensity.
3) The tube was tested by 1.62MPa pressure to make sure the tube is strong and not leakage .
4)The shell was tested by 0.6Mpa water pressure to make sure the water system not leakage .
Tubular heat exchanger Application:
Shell and tube heat exchanger is widely used for freezing industries,such as plating,oxidation,chemical industry,metallurgy,light industry,shipbuilding,heating, pharmaceutical,foodstuff ect, also for leather chiller, injection molding machine chiller, print chiller,PV shoe machine chiller and so on.
Production process
We are a heat exchanger manufactures for more than ten years! the products as the following:
1.fin type condenser,plate type condenser
2.Industrial dryer part heat exchanger,air heating radiator
3.Evaporative condenser,Evaporator
4.fin tube coil ,coil type heat exchanger
5.Heat recovery unit,industrial heat exchanger
we can be designed and manufactured all as per Customers' drawings or requirement.
